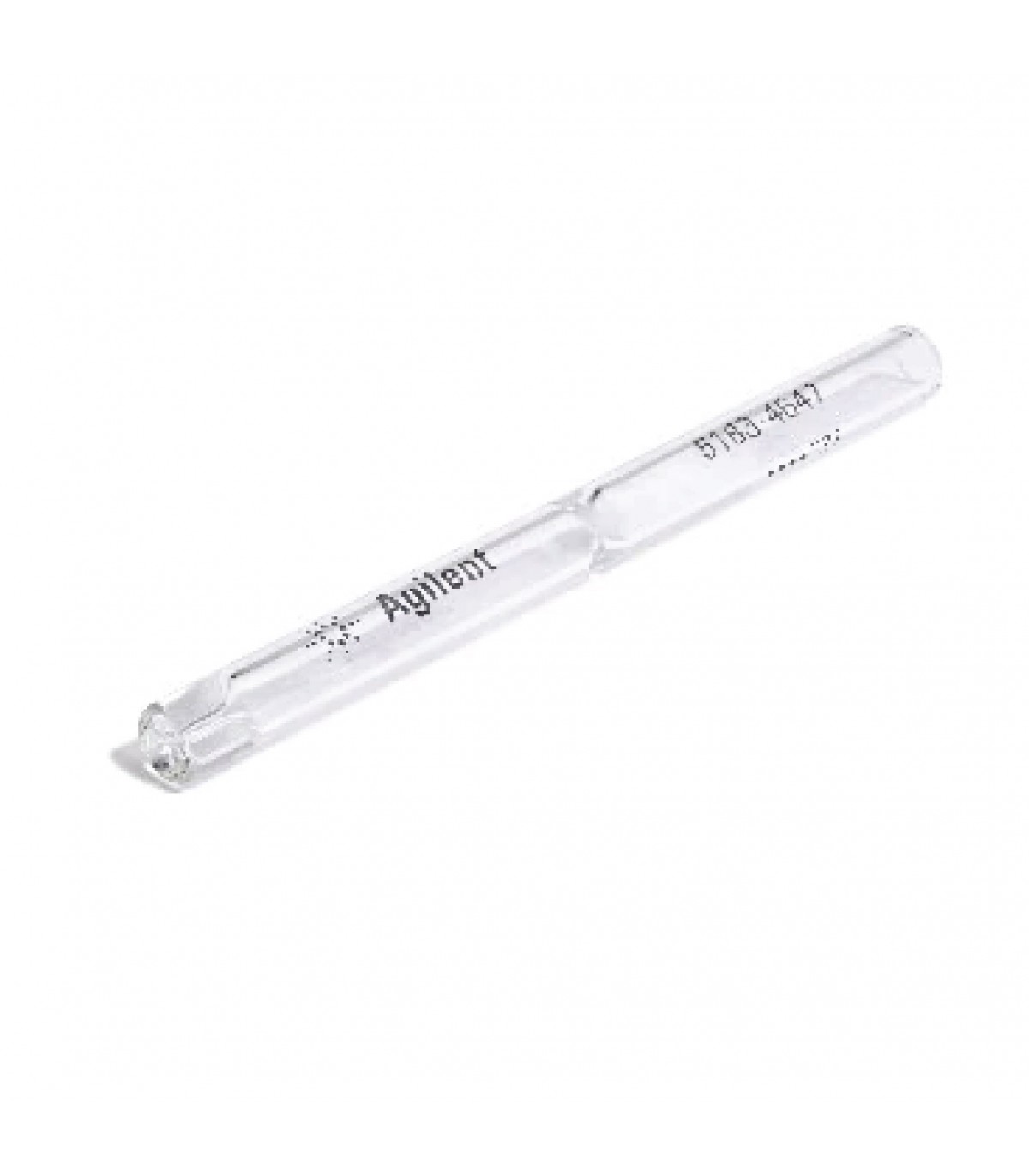

Agilent Inlet liner, Split, Single Taper, Glass Wool, Deactivated, Low Pressure Drop

Split injections are intended for use with a split/splitless injection port in gas chromatography analysis. Split liners tend to have a slightly smaller outer diameter to allow for gas flow. For ease of use and reproducibility, the liners have a positioning bead, a restriction to secure the position of the glass wool and a feature to consistently self-position to the recommended height. Agilent split liners are made to strict dimension specifications for optimal inlet performance and feature the tightest tolerances for OD, ID, taper and glass wool placement.

Read moreShow less
Product Details
Catalog Number 5183-4647
Volume 870 µL
Length 78.5 mm
Inner Diameter 4 mm
Outer Diameter 6.25 mm
Material Glass Wool
Component Type Inlet Liner
Read moreShow less
Additional Information
5183-4647

Data sheet

Volume
870 µL
Material
Glass Wool
Length
78.5 mm
Inner Diameter (ID)
4 mm
Outer Diameter
6.25 mm
Component Type
Inlet Liner
