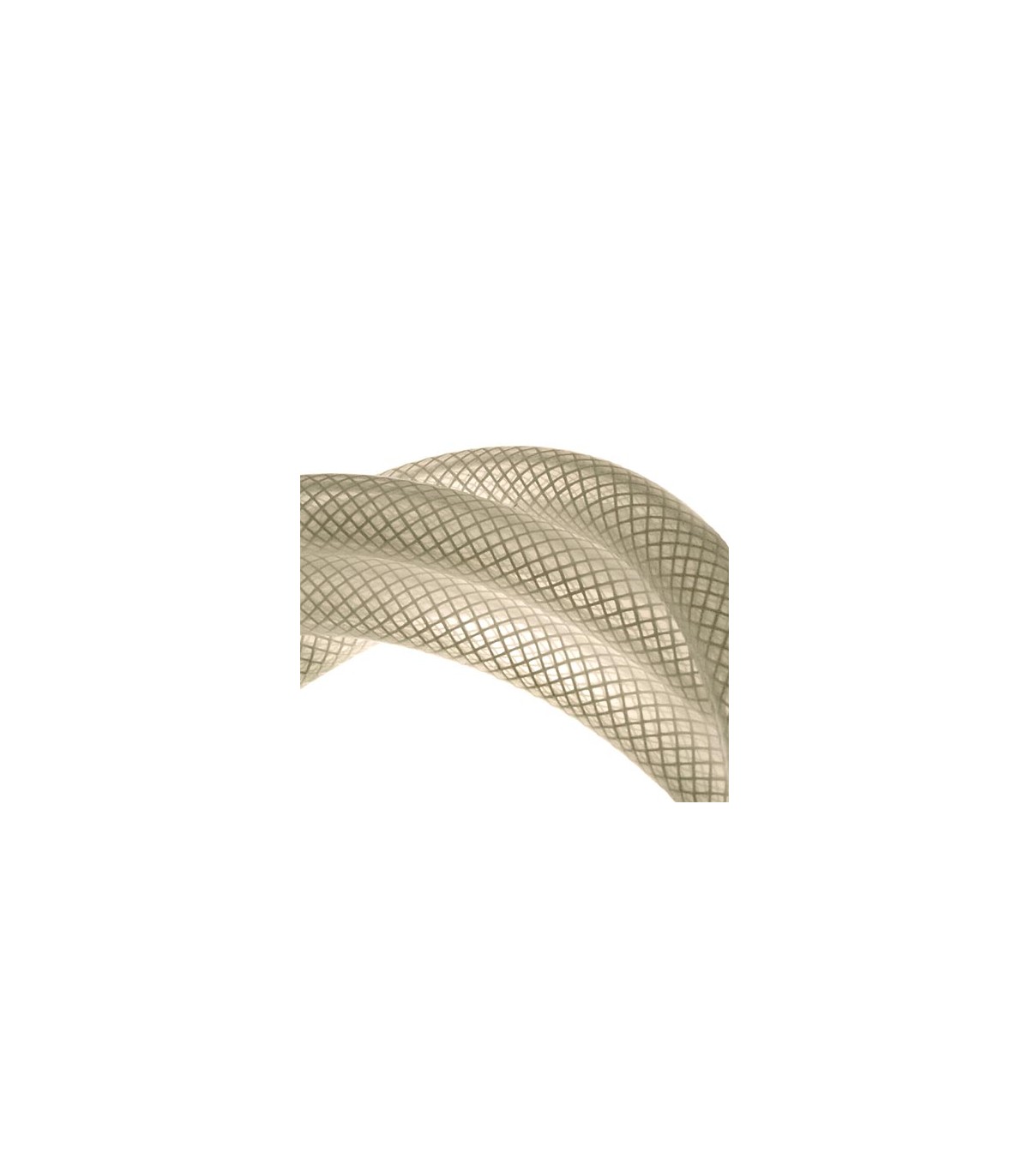

Sanisure- Pharm-A-Clear® R – Braided Silicone Hose
High Performance Hose for the Most Demanding Applications
For higher temperature and pressure applications or those with a need for improved kink resistance, we also offer our Pharm-A-Clear® R, platinum-cured braided silicone tubing. Pharm-A-Clear® R is constructed using an inner and outer platinum-cured silicone shell with a polyester inner braiding. The inner core is a softer (50 durometer, shore A) material for flexibility, while the outer shell is slightly harder (60 durometer, shore A) for strength.
Pharm-A-Clear® R Meets the Highest Regulatory Standards
Pharm-A-Clear® R hose is Animal derived ingredient Free (ADIF), meets USP Class VI, FDA CFR 177.2600, and ISO 10993 Requirements. Please contact us for quality documentation including extractable analysis.
Compatible With Most Modern Sterilization Techniques
Pharm-A-Clear® R stands up to repeated sterilization cycles including, but not limited to, ethylene oxide (EO), autoclave, steam in place (SIP), gamma irradiation, and e-beam irradiation. Although this hose has one of the longest service lives in it’s class, after repeated exposure to high temperature sterilization cycles the hose will become “gummy”, at which time it should be replaced.
| P/N | ID | OD | Wall | Max. Work. Pressure |
|---|---|---|---|---|
| PLTS-R-125-50 | .125″ | .365″ | .110″ | 170 psi |
| PLTS-R-187-50 | .187″ | .409″ | .111″ | 164 psi |
| PLTS-R-250-50 | .250″ | .488″ | .119″ | 135 psi |
| PLTS-R-375-50 | .375″ | .622″ | .125″ | 130 psi |
| PLTS-R-500-50 | .500″ | .800″ | .150″ | 100 psi |
| PLTS-R-625-50 | .625″ | .965″ | .170″ | 91psi |
| PLTS-R-750-50 | .750″ | 1.10″ | .175″ | 80 psi |
| PLTS-R-875-50 | .875″ | 1.240″ | .180″ | 66 psi |
| PLTS-R-1000-50 | 1.00″ | 1.350″ | .175″ | 60 psi |
| Bio Process Equipment |
| USP Water |
| Hot WFI |
| Sterile Transfer |
| Cell Culture Media |
| Clean Steam |
| Asceptic Fill and Transfer |
| Superior Bio Compatibility |
| Rated for High Temperatures (Steam in Place) |
| High Pressure Rating |
| Extremely Flexible |
| No taste or Odor Imparted |
| Ultra-Pure Medical Grade |
| Non-Pyrogenic |
| Lot and Batch Traceable |
| Continuous coils |
| Available with Unitized Sanitary (Tri-Clamp) Ends |
| Molded Manifolds |
| Ethylene Oxide (ETO) |
| Steam in Place |
| Autoclave |
| Gamma Irradiated |
| U.S. Pharmacopoeia Class VI |
| Cytotoxicity Criteria |
| CFR Title 21 Section 177.2600 |
| Fully Lot Traceable |
| Animal Derived Ingredient Free |
https://issuu.com/sanisure/docs/sanisure_tubing-brochure_11x8.5_6.2?fr=sZDFhNTM3NDA5NDA
