Check for stock
P/N: US4617509F-02

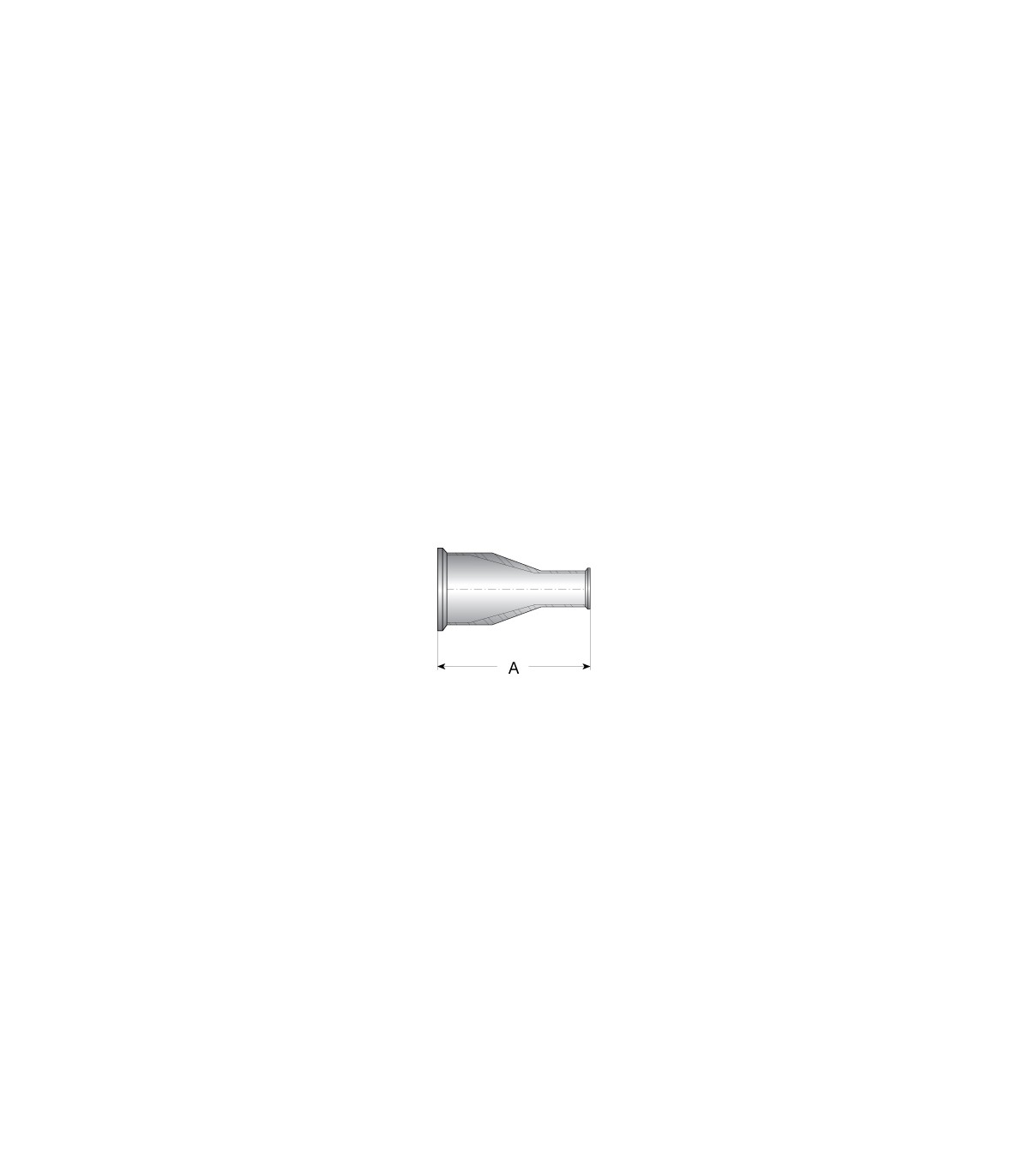

Sanitary Stainless Steel TE31 Short Concentric Reducer, 1-1/2" Clamp X 3/4" Weld, 316L
MATERIAL: 316L
ID Surface Finish: SF4 / 316L PD
ID RA µ-in. / µ-m.: < 15 / 0.375
OD Surface Treatment:
Light Polish
Light Polish
Specifications: BPE
Cleaning: A multi step cleaning cycle is conducted to ensure that fittings are cleaned with a perfect passivation layer. The cleaning process involves degreasing, pickling, electro polishing (as required) and passivation. During the final stage, the fittings are double-rinsed using D.I. water.
Inspection Procedures: All fittings produced by EGMO production are 100% visually inspected for any surface finish imperfections, as mentioned in Table SF-2.2-1, SF-2.2-2, SF-2.4-1 and SF 2.6-1 in the ASME BPE 2012 specification. All dimensional characteristics are inspected for tolerances listed in parts DT-3-1 to DT-9.3-1 in the ASME BPE 2012 specification.
Marking Information: Each fitting and process component is permanently laser Marked to show the following:
a. Heat number/code traceable to material test report for each product contact surface component
b. Material type
c. Manufacturer's name, logo, &trademark
d. ASME BPE mark
e. Product contact surface designation for the appropriate BPE specification
a. Heat number/code traceable to material test report for each product contact surface component
b. Material type
c. Manufacturer's name, logo, &trademark
d. ASME BPE mark
e. Product contact surface designation for the appropriate BPE specification
Packaging & Labeling: Each fitting is capped, bagged and labeled in full compliance with the ASME BPE standard. Every label includes a QR Code which directs to the fitting's Material Test Report.
